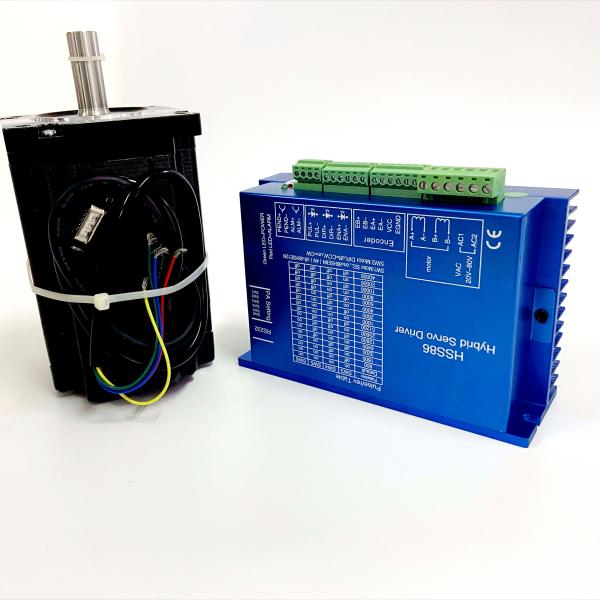

Closed Loop Stepper Motor 60HSE3N.m 1000rpm 88mm encoder 1000 ppr 1.8mH inductance Servo
Motor Specification
| Model No. | Step Angle | Current (A) | Resistance | Inductance | Holding torque | Encoder | Length | Weight |
| 60HSE3N | 1.8 | 5.0 | 0.45 | 1.8 mH | 3.0N.m | 1000ppr | 82mm | 1.55 |
| | | | | | | | | |
| Port NO. | | | Motor Wire color |
| | A+ | A phase winding + | red |
| | A- | A phase winding - | green |
| | B+ | B phase winding + | yellow |
| | B- | B phase winding - | blue |
| | +Vdc | Input voltage | DC24-50V |
| | GND | Input voltage | DC24-50V |
The HSS60 is a new hybrid stepper motor servo drive with communication capabilities. It use a new generation of 32-bit DSP control technology and vector control technology, it can prevent losing step and ensure the accuracy ; high-speed torque attenuation is much lower than that of ordinary open- loop drivers, which can greatly improve the high-speed performance and torque of stepper motors; The current control technology effectively reduces the temperature rise of the motor and prolongs the service life of the motor; the position error alarm function ensures the safe operation of the processing equipment. It is an ideal upgrade for traditional open-loop stepper drives and can replace some traditional AC servo systems at a price of only 50% of the AC servo system
Closed loop stepper system can be applied to all kinds small automatic equipment and
Instruments, such as engraving machine, special industrial sewing machine, stripping
machine, marking machine, Dispensing machine, cutting machine, laser phototypesetting, graph plotter, NC machine, automatic, assembly equipment and so on
Our maIn products includes stepper motors, closed loop system, gear reducer stepper motor, linear stepper motor, brake stepper motor, stepper drivers, controller board, spindles, power supplys, and other accessories
Our products are widely used in 3d printers, CNC routers, Engraving Machines, stage lighting control, security surveillance, video equipment, laserworkstation, carving machine, office automation, smart toy, digital controlled machinery and medical instrument and other automatic equipment.
Our Services
1. Sample order lead time is in 5 days. Mass quantity order lead time is 7-10 days.
2. We can accept payment via paypal, Western Union, Money Gram, T/T, L/C
3. We can provide you professional technical support. And our products quality gurantee is 18 months.
4. We accept products customize.
